Product Information
| Reference Number |
| 42471034 |
| Vehicle Application |
Passenger Car
|
| Specification |
| |
Item Name |
European Car Daily Truck Replacement 42471034 Brake Disc |

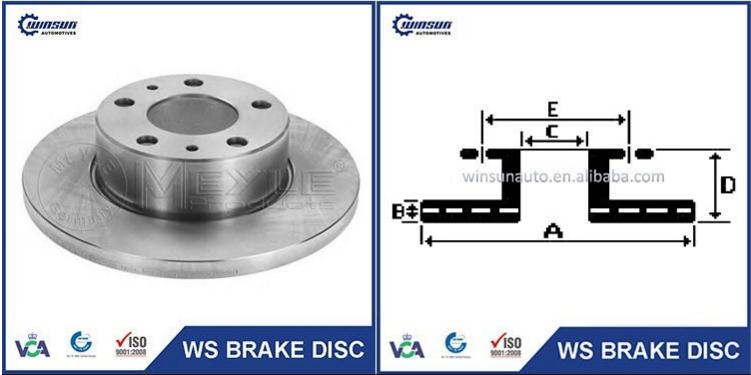

| A |
Diameter |
276 mm |
| B |
Brake Disc Thickness |
16 mm |
| C |
Centering Diameter |
73 mm |
| D |
Height |
69.5 mm |
| E |
Pitch Circle Diameter |
118 mm |
| |
Number of holes |
5 |
| |
Location |
REAR |
| |
Solid or Vented |
SOLID |
The Technical Index
A Material Paragram of brake disc, rotor & brake drum:
|
Standard
|
C
|
Si
|
Mn
|
P
|
S
|
C.E
|
|
G3000
|
3.1~3.4
|
1.9~2.3
|
0.6~0.9
|
≤ 0.15
|
≤ 0.15
|
3.90~4.15
|
B Mechanical Properties of brake disc, rotor & brake drum:
1) Tensile: ≥ 210 Mpa
2) Hardness : 160~241 HBS
C Microstructure of brake disc, rotor & brake drum:
Main Graphite Type: A , Grade: 3~5 .
Pearlite: ≥95% Ferrite: <5%
OEM Reference
| A.B.S |
17483 |
| A.P |
15386 |
| ATE |
24.0116-0128, 2401160128 |
| BOSH |
0986479163 |
| BRECO |
BS7582 |
| BREMBO |
08.7300.20, 08730020 |
| BREMSTAR |
FIV115 |
| CAR |
142.200, 142200 |
| CASALS |
55289 |
| CEI |
215.057, 215057 |
| CIFAM |
800-779 |
| COMLINE |
ADC9109 |
| DELPHI |
BG3753 |
| DT |
7.36007, 736007 |
| E.T.F. |
19-P5232, 19P5232 |
| ERREVI |
713671 |
| F T |
43552 |
| FEBI |
29160 |
| FEDERAL MOGUL(ABEX) |
FCR196A |
| FRI.TECH. |
BD1188 |
| FTE |
BS7391S |
| GRANTEX |
251.31.0020, 251310020 |
| JURATEK |
FIV115 |
| JURID |
569106J |
| JURID PROLEAD |
512846 |
| KAWE |
6120200 |
| KNORR |
Z001633 |
| LPR |
I2161P |
| MAGNETI MARELLI |
353611532550 |
| METELLI |
23-0779, 230779 |
| MEYLE |
2155230030 |
| MGA |
D1334 |
| MINTEX |
MDC1440 |
| NK |
202354, 312354 |
| OPEN PARTS |
BDA2437.10, BDA243710 |
| OPTIMAL |
BS-8878, BS8878 |
| PAGID |
54048 |
| PETERS |
026.670-10A, 02667010A |
| PILENGA |
5836 |
| REMSA |
61202.00, 6120200 |
| ROADHOUSE |
61202.00, 6120200 |
| SAMKO |
51023 |
| SASIC |
9004837J |
| SBS |
1815202354, 1815312354 |
| SWAG |
53929160 |
| TEMPLIN |
03.110.81335, 0311081335 |
| TEXTAR |
93104800 |
| TRISCAN |
812015132, 812015132C |
| TRUCKTEC AUTOMOTIVE |
14.35.051, 1435051 |
| TRUSTING |
DF1188 |
| TTC |
80332 |
| VALEO |
187149 |
| VEMA |
4444402 |
| VILLAR |
628.1514, 6281514 |
| WINNARD |
IV1056 |
| WOKING |
D61202.00, D6120200 |
| ZIMMERMANN |
230.6258.00, 230625800 |
